Discovery to delivery in 100 days

The Covid-19 pandemic shone an intense spotlight on the vaccine industry, placing an unprecedented demand on biopharma manufacturers to develop and produce a vaccine in a severely shortened timeframe. Fortunately, what emerged were mRNA vaccines, which proved the potential of this type of nucleic acid–based therapeutic to be developed under a fast timeline while also showing high efficacy rates.

Following on from the lessons learned during the Covid-19 pandemic, the Coalition for Epidemic Preparedness and Innovations (CEPI) hosted the Global Pandemic Preparedness Summit in collaboration with the UK government. One of the key questions asked was, “What if it took 100 days to make a safe and effective vaccine against any virus?” Before the pandemic, a vaccine could take up to 10 years to develop, but this was condensed to just 326 days for Covid mRNA vaccines. Producing a vaccine in 100 days could save lives, decrease economic damage, and possibly even prevent outbreaks from becoming pandemics. It’s an ambitious goal, but CEPI believes it is possible by tightening and shortening timelines at each stage.¹

Partnerships and collaborations were key to developing mRNA vaccines in a short time, and they will continue to be essential for the industry to achieve the 100-day timeline. While the coronavirus pandemic was a challenging situation, it led to increased investment into the vaccine industry and nucleic acid–based therapeutics overall—from governments, bilateral and multilateral donors, philanthropic organizations, development banks, and private sector investors.² With proven potential to treat diseases in vivo and offer long-lasting effects, nucleic acid–based therapies such as mRNA vaccines will continue to spark biopharma’s creativity to develop more molecules with new functions to improve treatments and patient outcomes.

Advances in nucleic acid–based therapeutics

There have been extraordinary leaps in advancing development of many types of therapeutics within the last several decades, in part due to advances in genomics, such as in bioinformatics and sequencing. This includes the extraordinary achievement of mapping the human genome, unlocking molecular pathways important in disease.³

Different modalities can be used to produce different types of therapeutics, for example, by using viral vectors, DNA, mRNA, and proteins. Different modalities will have different manufacturing challenges as well as different advantages and disadvantages, depending on what is needed by the manufacturer to produce the therapeutic of choice.

Viral vector systems are the traditional, well-established method for producing vaccines, with proven efficacy through clinical trials. There are many successful candidates in place and manufacturers have developed low-cost facilities around the technology. However, it is slower compared to other methods and requires the use of animal cells. It is generally suitable for mid- to large-batch scale. Protein vaccines also use well-established methods of using living organisms to mass produce the viral antigen, but they can be relatively complex to manufacture.

Because of the disadvantages to using traditional methods, there is high demand for alternative vaccines with clinical efficacy, high design flexibility, and fast manufacturing timelines. Developing new nucleic acid–based therapeutics is a research area where this demand could be met. Therapeutic agents using either unmodified DNA, RNA, or related compounds fall between small molecule and biologics when viewed from a development and regulatory perspective.⁴ Several of these agents are currently in clinical development while many have already been approved for human use.

Nucleic acid–based therapeutics have particularly benefited from the increased investment, collaboration, and partnerships resulting from the Covid-19 pandemic. Foreign Direct Investment (FDI) grew by 52% in 2021, according to GlobalData,⁵ with investments made to organizations providing services or products related to genomics, DNA and RNA sequencing, and genetic engineering. Some examples of this increased activity include the following:

• Merck announced a collaboration agreement with Orna Therapeutics, a biotechnology company pioneering a new investigational class of engineered circular RNA (oRNA) therapies.⁶
• Eli Lilly invested $700 million to create the Lilly Institute for Genetic Medicine, following their acquisition of Prevail Therapeutics, a gene therapy pioneer, and investment into MiNA Therapeutics Ltd, a pioneer in RNA activation therapeutics.^7,8
• EtheRNA, a developer of mRNA therapeutics, received millions of dollars in investments, including from companies like Novalis.⁹
• Arcturus, an mRNA medicines company, received $63.2 million from the US government to support development of saRNA vaccines.¹⁰

Nucleic acid–based therapeutics can be created using several sources. They include:

• DNA plasmid – small circular DNA molecule found in bacteria and other microscopic organisms that ranges in size from 4000 to 15 000 base pairs
• Protein-encoding mRNA – longer strand of mRNA, ranging from 100 to 20 000 nucleotides, that is generally defined by the coding sequence it contains
• Non-coding mRNA – shorter sequence of mRNA, ranging from 10 to 150 nucleotides, that does not contain a coding sequence (i.e., it is not translated into a protein)

The potential of RNA-based therapies

There are different types of RNA, each with a unique function. A useful distinction is to broadly classify RNA molecules into coding RNA (e.g., mRNA) or non-coding RNA (ncRNA) (Fig 1). Self-amplifying RNA (saRNA), circular RNA (circRNA), and trans-amplifying RNA (taRNA) have been shown to have coding potential, but their functionality is largely uncharacterized. Less than 2% of the human genome encodes for proteins.

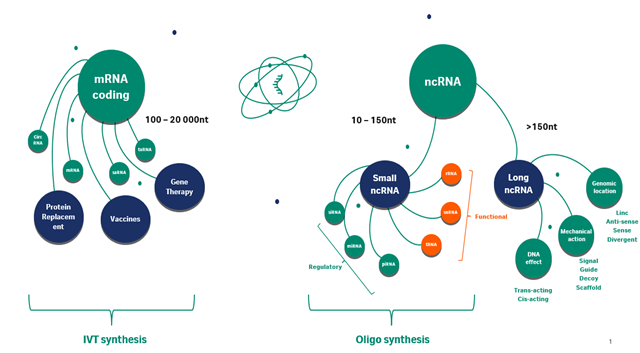

Fig 1. Different types of coding mRNA and ncRNA molecules. Left: RNA molecules classified into coding RNA (mRNA), where they carry the code for protein synthesis. saRNA, circRNA and taRNA are shown here as having coding potential. Right: Non-coding RNAs (ncRNAs) do not undergo translation, and there are both small and large ncRNAs. Examples of small ncRNAs include ribosomal RNA (rRNA), transfer RNA (tRNA), small nuclear RNA (snRNA), piwi-interacting RNA (piRNA), microRNA (miRNA), and silencing RNA (siRNA).

Non-coding RNAs do not undergo translation, but they are believed to serve a regulatory function. Thus, they could hold the key to broadening our understanding of gene regulation in the context of human disease. Examples of small ncRNAs include ribosomal RNA (rRNA), transfer RNA (tRNA), small nuclear RNA (snRNA), piwi-interacting RNA (piRNA), microRNA (miRNA), and silencing RNA (siRNA).

Some small ncRNAs are classed as having a regulatory effect and are involved in RNA silencing. MicroRNAs modulate physiological and developmental gene expression. Silencing RNAs medicate sequence-specific cleavage of nascent mRNAs. Piwi-interacting RNAs may protect the germline from genome invaders.¹¹ Long ncRNAs (IncRNAs) are widely expressed and have key roles in gene regulation.¹²

This diversity provides huge potential but also brings interesting challenges for manufacturers, as it may be that different molecules are suitable for different therapeutics. For example, therapeutic modalities for mRNA include replacement therapy, vaccination, and cell therapy.¹³ Therapies created from siRNA usually involve gene down-regulation while miRNA target multiple genes within one pathway for broad but specific response, thus making them useful for cancer.¹⁴

Most mRNA vaccines in clinical trials today are the traditional non-replicating type. Non-replicating mRNA vaccines are transient by nature and typically express antigen for a few hours or days. For some applications this can be beneficial; for others, such as systemic protein therapies, extended expression of a protein would be beneficial.¹⁵ With self-amplifying RNA, it is possible to deliver genes, such as a viral RNA polymerase, to enable mRNA to self-replicate. While this requires delivery of a more complex and longer RNA molecule, it could provide greatly enhanced biological activity, which allows for lower doses.¹⁶ Circular RNA is attractive for its increased stability, which allows for rapid production via in vitro transcription (IVT) without nucleotide modification, thus providing cost savings. However, it remains difficult to tell if circRNA will offer more than linear mRNA.

mRNA technology is changing the way therapies are developed

The potential of mRNA vaccines gained scientific attention in 1990 after the in vivo expression of a protein was observed upon injection of naked mRNA into the skeletal muscle of a mouse.¹⁷ Since then, the industry has seen rapid development and expansion. Today, more than 140 clinical trials have looked at mRNA to address infectious disease, cancer, and a variety of other application areas.

While there are questions over the advantages and disadvantages of the types of mRNA, the overall potential is clear. The advances made in mRNA vaccines for infectious diseases are renowned, but less is known about RNA therapies that are being developed by reimagining what is possible using existing technologies, such as in vivo gene editing techniques, RNA cell therapy as a safer alternative to CAR-T, and mRNA to deliver the sequence of an antibody as an alternative to cells. RNA technologies are also being researched for use in allergen-specific immunotherapy¹⁸ as well as in agriculture as a vehicle to replace pesticides.¹⁹

Compared to traditional viral vector systems, mRNA systems are much faster as they do not require animal cells. This also potentially makes them safer, although mRNA vaccines have yet to show the proven efficacy and safety of viral vector vaccines due to their novelty. Many manufacturers do not wish to invest in additional technology to manufacture a new modality, particularly one that currently has increased logistical costs. However, mRNA vaccines have the potential to work for small- to medium-batch sizes as well as large-batch scale, making them suitable for personalized medicine.²⁰

New modality for cancer treatment

mRNA vaccines have also gained traction as a therapeutic approach for treating cancer. mRNA can elicit immune responses to mutated oncogenes or regulatory cancer genes such as TP53, which are shared across many cancers, in a therapeutic pan-cancer approach. Other approaches for cancer include personalized therapy, where vaccines are developed for a person’s individual mutations. In this regard, a patient’s mutanome would be identified by next-generation sequencing, and a handful of custom mRNA vaccines would be developed targeting the individual’s neoantigens.²¹

The speed and potential cost gains of mRNA technology make it an interesting technology for personalized medicine. It is possible to take tumor tissue samples and develop mRNA vaccines that result in the expression of tumor antigens.²² Many companies are working on integrated system mRNA processing solutions for this type of immunotherapy, such as CureVac with an mRNA printer and companies pursuing plug-and-play approaches like Nutcracker Therapeutics.²⁰However, there is also room for improvement in smaller-scale cGMP manufacturing as much of the current equipment is repurposed from the biotech industry and is designed for much larger scales than needed for mRNA.

Therapeutic cancer vaccines are advancing quickly in development, with over 70 clinical trials completed and more results expected in the next two to three years.¹⁷ Techniques under evaluation include the direct stimulation of antigen-presenting cells via ex vivo electroporation of mRNA. Other methods are direct intratumor injection, whole body approaches, and targeted organ approaches. Currently over 50% of clinical trials using mRNA focus on the treatment of melanomas, prostate cancer, and brain cancer.¹⁷ None of these approaches, however, make use of lipid nanoparticles (LNP), the current standard for scalable production of an mRNA modality.

Thus, while numerous applications of mRNA vaccines are in various stages of development, targeting specific organs, tissues, and cells with LNPs is still under research.

Considerations for rapid pandemic response

In an article for The New England Journal of Medicine,²³ several doctors and scientists from CEPI wrote about five areas of focus to enable a rapid vaccine strategy, which include:

• Leveraging insights about new pathogens and technologies
• Supporting innovation in the vaccine development process
• Advancing analytics to inform processes
• Promoting collaboration among stakeholders
• Continuously reviewing evidence to support approval

Implementing current best practices while leveraging these goals could enable developing pandemic vaccines in 100 days. To allow rapid testing of candidates, the National Institute of Allergy and Infectious Diseases (NIAID) proposed to develop and characterize prototype vaccines.^24,25 The goals for the NIAID Preparedness Plan are similar in scope, proposing to²⁶:

• Characterize pathogens of concern
• Shorten timelines between pathogen emergence and countermeasures
• Bridge or eliminate gaps in research, infrastructure, and technology

Key findings from previous pandemics and epidemics indicate a lack of existing diagnostics, therapeutics, and vaccines; low manufacturing capacity; process efficiencies; and a lack of coordination and preparedness.²⁷ The 100-day mission suggests that embedding best practices and preparation into usual process measures is needed, for example, by making simplified and transferable manufacturing practices the norm and enabling scaled-up processes when needed.

With several choices available, it may be that manufacturers of therapeutics will need to adopt a flexible approach to manufacturing, as one modality could suit a specific therapeutic better than another. At this time, manufacturers may find themselves with a choice to stay with a specific modality (e.g., mRNA vaccines, viral vector vaccines) or focus on a specific research area and adapt manufacturing to what is needed. This requires a degree of resilience in manufacturing strategies.

The timeline for manufacturing and release of a clinical-grade vaccine will always be platform dependent, but mRNA vaccines offer the potential to be completed in as little as five weeks,²³ in comparison to viral vector systems, which can take around 6 to 36 months.¹⁷ The increased speed from discovery to delivery for mRNA vaccines will help manufacturers bring vaccines to market quicker, thus allowing the technology to be suitable for meeting the 100-day strategy timeline. To achieve this goal, however, manufacturers need to enhance their platforms now for rapid scale-up potential.

Overcoming manufacturing challenges

While there are many challenges to manufacturing a therapeutic, one key challenge is adapting processes. Solutions are often home built or optimized for other molecules and distributed processes can lead to bottlenecks. Many manufacturers don’t have as much knowledge of these new arenas of manufacturing development and so they have not yet been standardized. This leads to challenges with operations, personnel, process, quality control, contamination, and others.

Process is central to biomanufacturing. A biomanufacturing enterprise includes processing parameters, facility, resources, and infrastructure; these elements are integrated and influence each other. When assessing vaccine manufacturing, many of the technical operations will be translatable regardless of modality, especially when following GMP manufacturing guidance. While some processes will be different for each modality, there will be many similarities in operations, such as the equipment used for purification and IVT. Holistic solutions can reduce project risks, stabilize costs, maximize capacity, and help speed up time to market.

Description automatically generated with medium confidenceAnother challenge for mRNA manufacturing is that it is much smaller scale than traditional cell-based modality manufacturing, requiring manufacturers to think differently about their process. A small-scale approach is also one of the reasons why mRNA is so attractive, as it can provide considerable space and cost savings. Changing parameters in cell-based manufacturing usually results in time delays, whereas in mRNA manufacturing, adopting new processes is much quicker and doesn’t present as many contamination issues. This makes mRNA vaccines suitable for the 100-day strategy.

Process challenges do exist for mRNA, including DNA linearization and purity at various stages of the process. Purification can be more challenging for mRNA molecules because, due to their size and varying impurity profiles, they do not interact well with traditional chromatography resins. Flexibility in purification technologies as well as allowing process development scientists to mix and match media based on the specific characteristics the molecule may help alleviate this problem. Other potential challenges include obtaining GMP-grade reagents and ensuring continuous supply of raw materials.

Flexibility to scale is key to success

With more diversity in modality and scale than ever before, it becomes important to “build in” flexible and resilient solutions that allow researchers the ability to scale—and scale rapidly, if necessary. One of the most common bottlenecks in the current mRNA manufacturing process is scaling, with mass population vaccines needing larger-scale production technology. Manufacturers can build flexibility into their processes by ensuring that equipment is scalable and supports the transfer from process development to GMP manufacturing. Flexible, configurable manufacturing solutions, such as the Cytiva FlexFactory™ biomanufacturing train and KUBio™ modular facility, offer complete start-to-finish, tailored solutions, developed and delivered for monoclonal antibody (mAb) applications as well as for plasmids, mRNA, and viral vectors.

One way to look at the scale of manufacturing is to estimate market size, the uptake of a potential therapy, and the dosing strategy, and then back calculate from that. Investing in flexibility will make it possible to grow, allowing a small fast start with something that is easy to scale up or scale out. Considering manufacturability and scale-up from the beginning can avoid problems later in the process. A protocol or method that quickly gives a pure product for early clinical material might be great, but if it can’t scale up or be used in manufacturing, this will become an issue.

Manufacturability includes assessing material suitability and thinking about material sourcing early. Continuous planning, including maintaining a close relationship and regular communication with suppliers, is critical for rapid expansion of manufacturing facilities. It is also essential to know the quality attributes of the product, so early thinking on QC testing can save time later in the process.

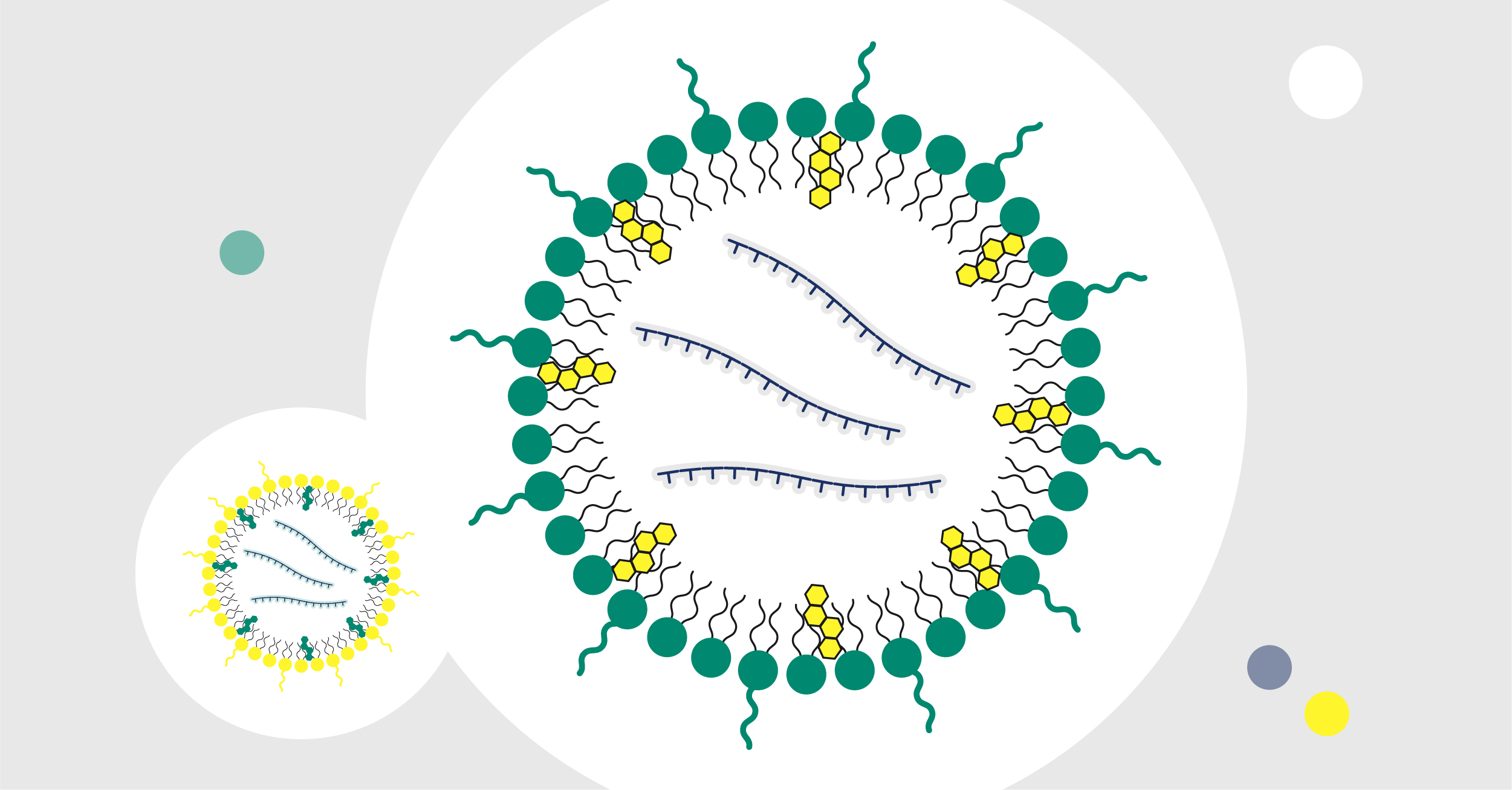

Targeted delivery of mRNA therapeutics is an issue that needs to be addressed, as mRNA is unstable and needs protection from RNase degradation. Delivery methods include lipid-based nanoparticles (LNPs), polymer nanomaterials, silica nanoparticles, carbon and gold nanomaterials, and N-Acetylgalactosamine (GalNAc). Examples of proven efficacy of the LNP platform include Alnylam’s Patisirin and the Covid-19 vaccine from BioNTech and Moderna.¹³

LNPs are typically formed in a rapid mixing process using microfluidic devices,²⁸ which is more of an art than an established method. Greater understanding of the influences of the LNP ingredients and their effect on LNP stability, delivery, efficiency, immune response, and ultimately patient outcomes would benefit the industry.²⁸ Optimization of LNPs and other delivery technologies is critical to determining the ultimate success or failure of a therapeutic.

Filling and finishing of vaccines will also need to be considered for rapid response. Distribution can be an issue, as current mRNA vaccines require frozen storage. Alternative methods, such as lyophilization, are under study,²⁹ with Gennova recently achieving approval for its Covid-19 vaccine in powder form.³⁰

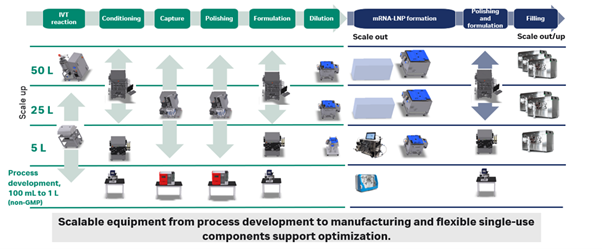

Fig 2. Scalable equipment, from process development to manufacturing and flexible single-use components, support optimization.

The ethos of flexible and scalable solutions is something that Cytiva promotes across many product ranges, allowing support of manufacturing in various modalities, including non-viral delivery for genomic medicines, and at different scales (Fig 2). Manufacturers can be prepared for future pandemics by building flexibility into their processes, helping to ensure that equipment is scalable and supports the transfer from process development to GMP manufacturing at a rapid pace.

RNA technology and the potential of the 100-day vaccine

RNA therapeutics is a rapidly growing field, with many applications in development and therapeutics in clinical trials. The technology offers great potential in the areas of infectious disease and personalized medicine due to its advantages in flexibility, cost, and speed of development. Currently, mRNA vaccines are one of the most suitable manufacturing modalities to meet the 100-day vaccine strategy due to the increased speed they offer during the manufacturing stage. There are still challenges to overcome to fully realize the possibilities, but some of these will be addressed with increased focus and funding.
