Choosing chromatography membranes, resins, fibers, or monoliths

Choosing the right chromatography format for your process is key to success in purifying biologics such as proteins and viruses. With options ranging from traditional resins to monoliths, membranes, and fiber-based adsorbents, it can be confusing.

Each chromatography format has different features: how much it can bind; how fast liquid flows through; how easy it is to scale up; and which molecules it works best with. Knowing the differences between chromatography formats—and when to use each—will help you purify your target product well, enhance yield, and remove impurities such as host cell proteins (HCP) to the level required by regulatory guidance.

This guide will explain the choices, what to look for, key factors, and common uses so you can make smart decisions when selecting a chromatography format.

Technologies overview

Chromatographic materials can be grouped into resins, membranes, monoliths, and fiber-based adsorbents. Their structures are compared in Figure 1. Each format has its own structure and chemistry to help separate and purify antibodies, proteins, viral vectors, mRNA, and other molecules. All four chromatography types can support the full gamut of ligands from affinity chromatography (AC) to ion exchange chromatography (IEX), hydrophobic interaction chromatography (HIC) through mixed-mode (multimodal) chromatography; the latter combines more than one property, such as IEX and HIC.

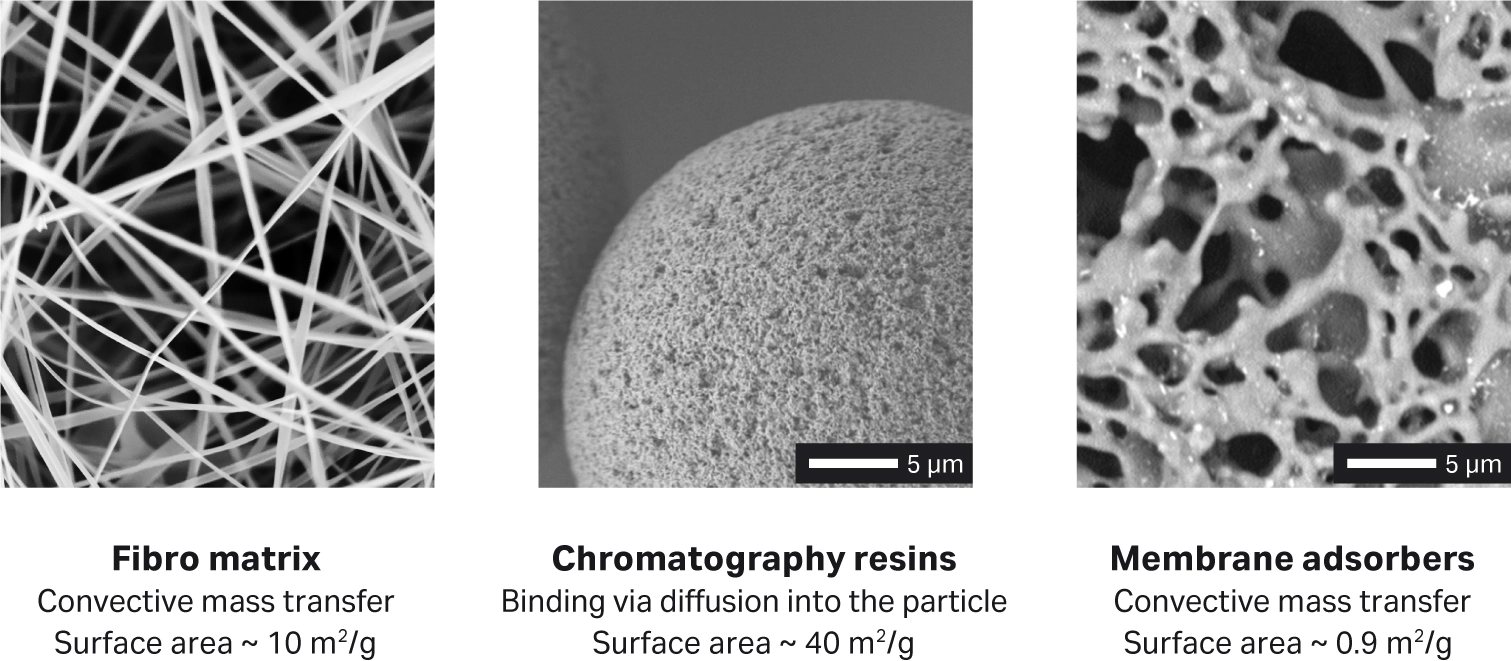

Fig 1. Magnified view of a fiber-based adsorbent (Fibro matrix), a chromatography resin bead, and a membrane adsorber.

Resins

Let's look at the structure, uses, benefits, and points to consider for chromatography resins.

Resin structure

Resins are usually made of agarose or synthetic polymer beads. A key feature of the beads is they typically contain pores that provide a large surface area to support high binding capacities. However, the presence of pores within the beads often means that binding to resin (mass-transfer) is dependent on diffusion: To achieve high binding capacities it's often necessary to optimize and even extend residence time, which is the time that a solute spends in a chromatography column during the separation process.

Because resins are porous, they can uniquely separate by size exclusion chromatography (SEC). SEC rationale is dependent on small molecules entering pores and eluting later, while large molecules are excluded from the pores and elute earlier. SEC is used for analysis in biologic manufacturing but not generally used for process-scale purification for a number of reasons, including the inability to load more the ~ 5% of the column volume and still get resolution.

Uses of resins (sweet spot)

Capture and polishing of:

• Monoclonal and multispecific antibodies
• Recombinant proteins
• Antibody fragments

Advantages

Points to consider

High binding capacity because of large surface area (but accessible surface area is the important point). Many ligand types for specific separations. Well-established in biopharmaceutical (biopharma) industry. Can scale from laboratory (lab) to production floor. Prepacked columns are available across scales. Resins are packed in columns, which confers two advantages: Low holdup volume (volume of chromatographic media vs dead space), which can enhance separation performance and lower buffer consumption. Columns can be packed to any size or volume by adjusting the bed height. Compatible with process intensification.

Pores can exclude larger targets, limiting binding to the resin surface. Diffusion-limited mass transfer can reduce efficiency at very high flow rates. Potential high pressure drop at large scales. Longer processing times for viscous feeds compared with membranes.

Membranes

Now, let's take a closer look at the structure, uses, benefits, and points to consider when using chromatography membranes.

Membrane structure

Membranes are flat-sheet or hollow-fiber structures with functionalized surfaces. They're thin and very porous, with ligands on the surface. Membranes let liquid move quickly through wide channels by convective mass transfer (movement induced by an external force, typically a pump). The pores of a membrane traverse the media offering a path for liquid flow, unlike resin where the pores are typically dead-ended or highly circuitous. Thus, binding to membranes is typically very quick and has limited dependence on residence time. Membranes have a low pressure drop and fast processing times, making them well-suited for single-use systems and process intensification.

Uses for membranes (sweet spot)

• Protein polishing steps
• Viral vector purification
• High-flow processes for large biomolecules
• Continuous and single-use processing

Advantages	Points to consider
High flow rates and low pressure drops. Shorter residence times for target molecules compared with resins. Prepacked and ready to go. Suitable for single-use or disposable setups. High capacity for high molecular weight targets. In contrast to resins, large biologics aren't excluded from membrane pores.	Perhaps lower binding capacity than bead-based resins for small targets. Limited by available sizes, which requires more thought (compared with resins) on how to do scale-up.

Monoliths

Let's go through the structure, uses, and more details about monoliths.

Monolith structure

Monoliths are constructed of one solid piece with tiny pores, usually made from polymer or silica. Like membranes, they let liquid move quickly through wide channels by convective mass transfer instead of slow diffusion.

Monoliths have less surface area than resins but work fast, handle viscous feed streams, and maintain performance at high flow rates. Their design makes them suitable for quick purification steps where product stability is key.

Uses for monoliths (sweet spot)

• Quick capture of large biomolecules, plasmids, and viruses
• High-throughput purification

Advantages	Points to consider
Excellent mass transfer and even flow. Can run at high flow rates without big pressure drop. Fast processing of large volumes. Works well with very viscous feeds.	Typically lower surface area than beads, which translates to lower binding capacity. High starting cost. Because of how they're produced, each monolith is unique leading to variability. Limited by available unit size, which requires more thought (compared with resins) on how to do scale-up.

Fiber-based adsorbents

Finally, let's discuss the structure, uses, benefits, and details of fiber-based adsorbents.

Fibro adsorbent structure

Fiber-based adsorbents are made of functionalized fibers arranged in a woven or nonwoven matrix. Fibro adsorbents from Cytiva are based on electrospun cellulosic fibers. Molecules bind to ligands on the fiber surface, and convective mass transfer allows fast binding.

These adsorbents have moderate capacity compared to resins and very good capacity for large targets, such as viral vectors and nucleic acids. They're very fast and work well for affinity capture of biologics including mRNA and mAbs. Their flexible design and single-use format make them practical for research, process development, and clinical use.

Uses for fiber-based adsorbents (sweet spot)

• High-flow steps
• mRNA capture
• Antibody capture

Advantages	Points to consider
Very high flow rates because of low resistance. Efficient mass transfer and quick processing. Works with existing single-use systems.	Really good capacity for very large targets. Less established for biopharma processes. Limited ligand options right now, but a large set of ligands could be realized on this platform.

Key criteria for choosing resins, membranes, monoliths, or fiber-based adsorbents

Knowing these criteria can help you pick the best option for your purification goals.

Analyte properties

Start by knowing your molecule. Size, shape, charge, and hydrophobicity will affect how it interacts with the matrix and ligand. Small- to medium-sized targets (< 1 MDa), including most proteins and monoclonal antibodies, are most likely to have the highest capacities in resin formats. Larger targets such as viruses >3 MDa are likely to have higher capacities with the convective formats. However, for many purifications the capacity isn't always the primary consideration; instead, separation of product from the contaminants is key.

Where available, it's often easiest to begin with an affinity purification. Typically, an effective affinity purification might result in 3 logs of impurity clearance, resulting in a product that is already 99.9% pure after the first chromatographic step. For higher purities or where affinity capture isn't available, it's common to see an IEX step. Here the pH can be used as a lever to adjust the binding of product and contaminants to provide effective separation via anion and/or cation exchange chromatography as shown in Figure 2.

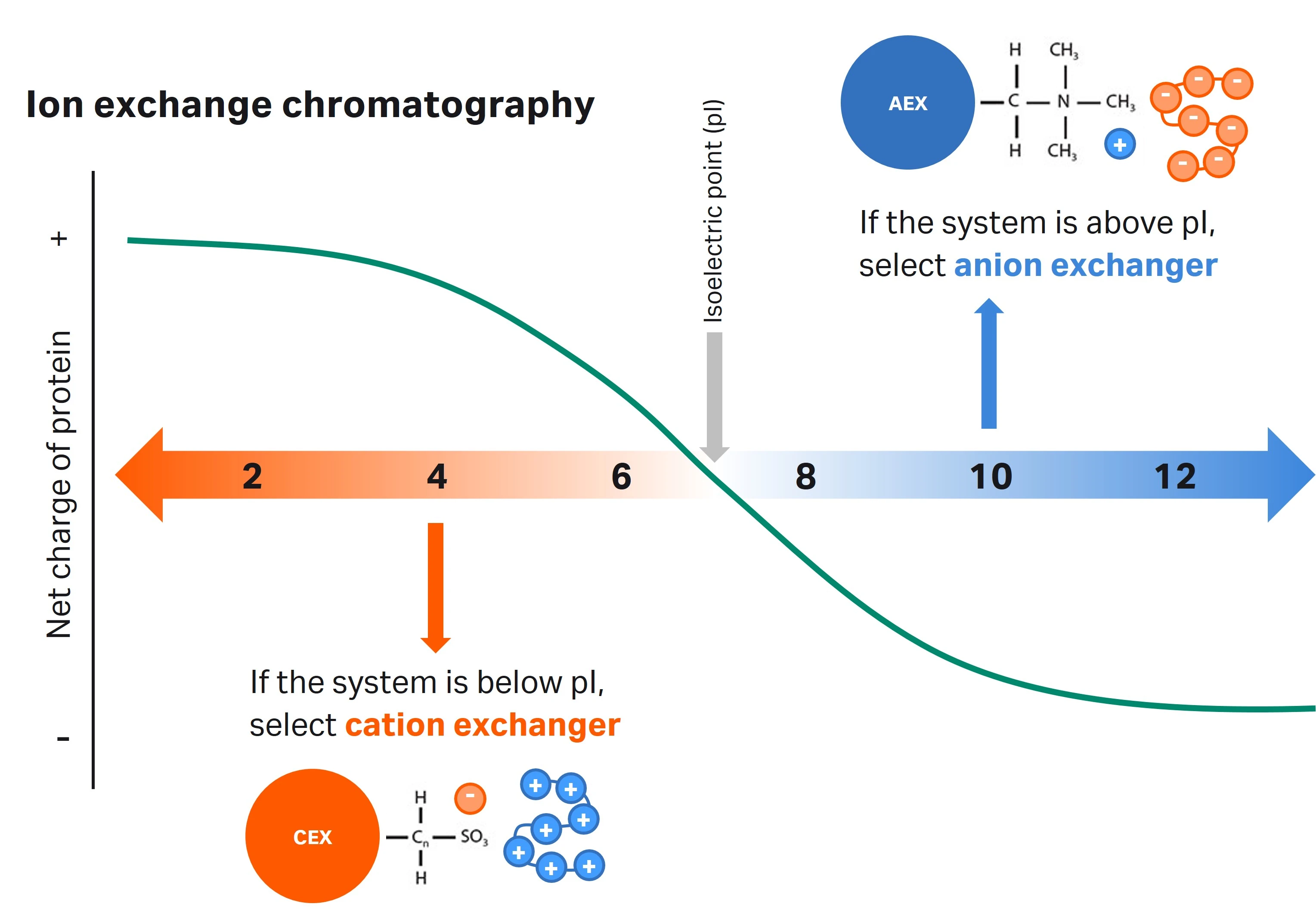

Fig 2. Diagram showing the association of the target's isoelectric point and the choice of cation or anion exchanger. AEX is anion exchanger. CEX is cation exchanger.

HIC (Fig 3) is also commonly used for polishing. It can be particularly effective for the polishing of highly aggregated mAbs to lower the aggregate content.

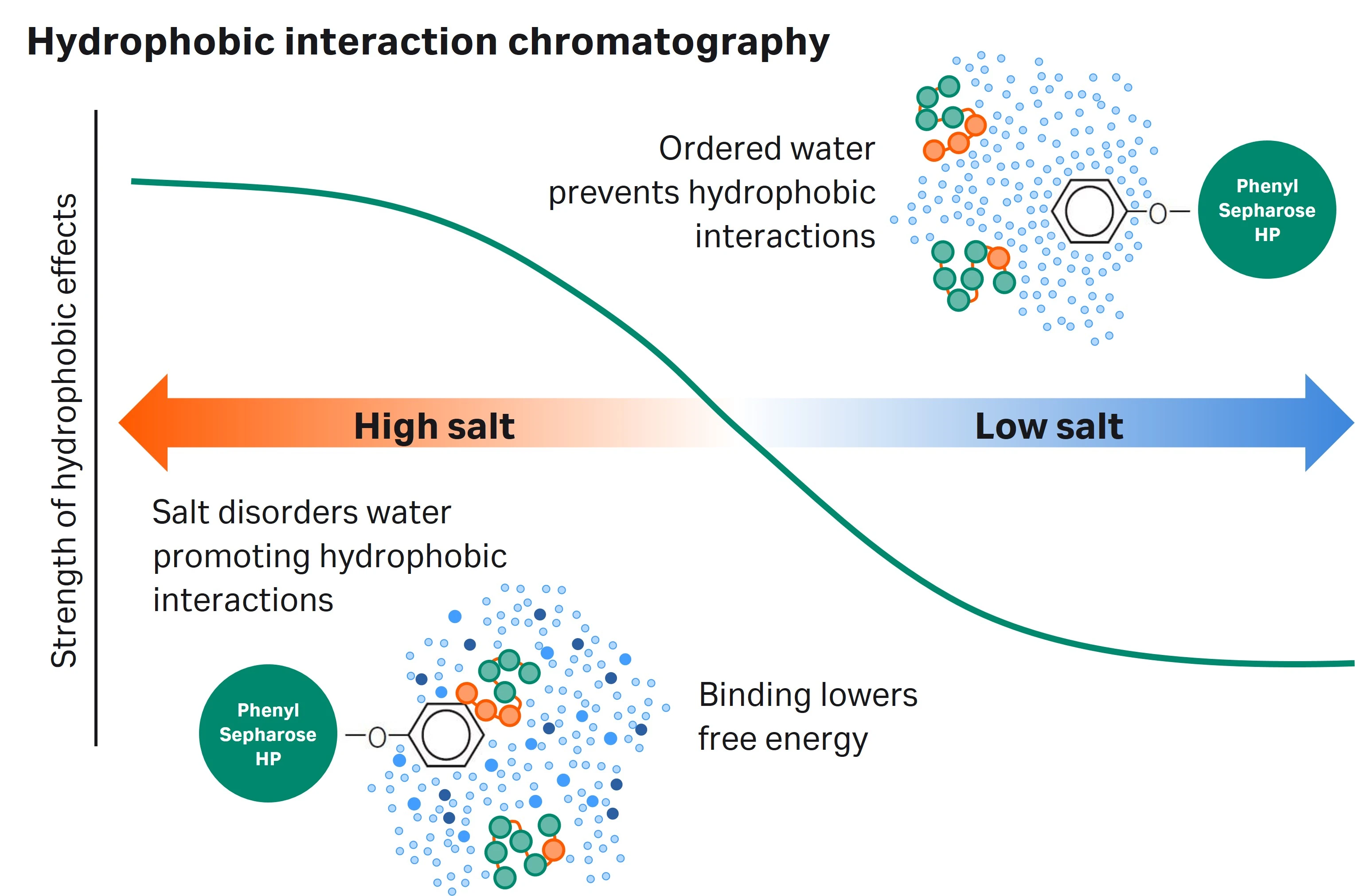

Fig 3. Highly ordered water shells surround the hydrophobic surfaces of ligands and proteins. Hydrophobic substances are forced to merge to minimize the total area of such shells (maximize entropy). Salts enhance the hydrophobic interaction. The equilibrium of the hydrophobic interaction is controlled predominantly by the salt concentration. Phenyl Sepharose™ HP represents the HIC resin.

Mixed-mode chromatography typically brings both ion exchange and hydrophobic functionalities. Being able to work with both types of binding at once gives the possibility of superior purification performance, but perhaps at the expense of increased process development time. Our scientists can help you develop your process.

Aligning with process goals

Think about what you want a given step to do. Are you capturing a large amount of product? Polishing to remove impurities? Checking purity and quality? Also, decide if you'll run in batches or continuously. Preparative work often focuses on yield and throughput, while analysis focuses on resolution and repeatability.

Choosing a format that aligns with these goals supports a process that's both efficient and fit for purpose.

Evaluating performance metrics

These metrics provide insight into how well a matrix will behave in a process. Dynamic binding capacity (DBC) is a key measure of how much of the target molecule a matrix can hold under flow. Pressure tolerance, pH range, and chemical stability determine robustness, while cleaning-in-place (CIP) compatibility supports repeated use while maintaining ligand performance.

Balancing these factors helps keep the recovery consistent, the purity high, and the process reliable.

Key commercial considerations

Commercial factors can matter as much as technical ones when choosing a chromatography format.

• Supply chain and vendor base: Resins and membranes have many suppliers, making them easier to source. Monoliths and fiber-based adsorbents often come from one vendor, so supply risk is higher. Check lead times and backup options before deciding.
• Regulatory acceptance: Resins have the longest track record and lowest risk. Membranes are well understood for GMP use, while monoliths need extra documentation. Fiber-based adsorbents are newer and require close work with vendors for compliance.
• Scalability and implementation: Resins scale by making larger diameter columns. Membranes and monoliths scale by increasing the unit size; monoliths can also scale by running cycles or parallel setups. Fiber-based adsorbents scale by fast repeated cycles and increasing the unit size.
• Cost and value: Resins might not seem as economical as other options, but they have a very high binding capacity for large targets and last for many runs with proper maintenance. Membranes and fiber-based adsorbents are single use, cutting cleaning time but adding per-batch cost. Monoliths are expensive but may be a good choice when speed is critical. Consider the overall value of each option before making your choice.
• Other practical factors: Vendor support and training can speed setup, and application expertise can help you quickly develop a process for your target molecule. Resins and membranes are widely used, which simplifies tech transfer.

Comparison table: resin vs membrane vs monolith vs fiber-based adsorbent

Feature	Resin	Membrane	Monolith	Fiber-based adsorbent
Structure	Beaded particles packed in columns	Porous or fibrous functionalized membranes	Continuous porous polymer block with channels	Electrospun cellulose fibers (Fibro adsorbent)
Mass transfer	Based on diffusion (slower than other formats)	Based on convection (faster)	Based on convection (very fast)	Based on convection (ultrafast)
Binding capacity	High for large targets	Moderate	Moderate to high	High at short residence times
Flow rate	Low to moderate	High	Very high	Extremely high (cycle times < 5 min for mAbs)
Pressure drop	Moderate to high	Low	Low	Low
Scalability	Well-established, scalable	Scalable with some limitations	Scalable, but niche availability	Scalable, but niche availability
Applications	Protein purification, purification of many other molecule types, affinity capture, polishing steps	Virus removal, flow-through steps, polishing, and large biomolecules	mRNA, pDNA, viral vectors, large biomolecules	mRNA with polyA tails, mAbs, rapid cycling
Cleaning/cleaning-in-place (CIP)	Compatible with standard CIP protocols; high alkaline stability (1.0 M) options are available for antibody capture	Compatible with standard CIP protocols; high alkaline stability (1.0 M)	Compatible with standard CIP protocols; high alkaline stability (1.0 M)	Compatible with standard CIP protocols; high alkaline stability (1.0 M). May operate multiple cycles in a short time, eliminating the need for CIP between cycles.
Cost	Moderate to high	Moderate	High (specialized use)	High but cost-efficient when cycled rapidly

Conclusion: making the right choice for your process

Picking the right chromatography medium means balancing molecule properties, process goals, and practical factors.

• Resins are well-suited for high-capacity, well-established workflows. Prepacked options are available.
• Membranes, monoliths, and fiber-based adsorbents work well for fast processing, are prepacked, and offer quick capture of large molecules.
• Knowing the strengths of each option will help you to improve yield, purity, and efficiency. This guide gives a starting point for choosing the best medium for any biopharma purification process.

Acknowledgements: Special thanks to Henrik Ihre and Mark Schofield for sharing their chromatography expertise and for editing support. And thanks to Christy Caporale for Figures 2 and 3.

Frequently asked questions about chromatography matrices

Where is each chromatography technology typically used in biopharma?

Resins are used for high-capacity capture and polishing of many molecules including proteins and antibodies. Membranes are used for high-throughput or single-use processes, often for viral vectors or mRNA. Monoliths handle large molecules and those that are sensitive to shear. Fiber-based adsorbents allow rapid capture of mRNA and mAbs.

Can these chromatography technologies be used together?

Yes, this allows you to combine their strengths. For example, you can capture the product with resin or fiber-based adsorbent, polish with a membrane, and use monoliths for intermediate steps that require high mass transfer or low shear.

Which chromatography technology is best for my application?

The choice depends on the target molecule, process goals, and throughput needs. Pick a format that matches these factors.

What are specific use cases for each technology?

Resins are well-suited for protein capture and polishing but are also a good choice for other molecule types. Membranes work well for viral vector or mRNA purification. Monoliths are suitable for large biomolecules and high-throughput needs. Fiber-based adsorbents allow rapid cycling and are well-suited for large molecules.

How do I evaluate chromatography matrix performance?

Performance is assessed by binding capacity, resolution, recovery, pressure limits, and chemical stability. The matrix should also give the same results at different scales and be compatible with CIP protocols if not single use.
