In modern analytical laboratories and in biologic manufacturing, liquid chromatography (LC) is a cornerstone technique used to separate, identify, and quantitate components in complex mixtures. Whether you're analyzing pharmaceutical compounds, environmental pollutants, or food additives, it’s essential to understand what is liquid chromatography and how it works.
This guide provides an in-depth look at liquid phase chromatography, covering its principles, types, system components, workflows, and real-world applications. It’s designed for scientists, students, and professionals seeking a clear and complete understanding of this powerful analytical and preparative method.
Understanding liquid chromatography
Liquid chromatography (LC) is a powerful technique used to separate, identify, and quantitate components in a liquid mixture. It works by passing the sample through a column or other container packed with a stationary phase, also called a matrix, while a liquid mobile phase carries the sample through the system.
The different components in the sample interact differently with the stationary phase, causing them to leave the stationary phase at different times. These differences in elution times are recorded as a liquid chromatogram, which displays peaks corresponding to each compound.
Key characteristics of liquid chromatography
- Separation based on chemical properties: Each compound in a mixture interacts uniquely with the stationary and mobile phases, leading to separation. Interaction can also be based on physical properties, as for size exclusion chromatography (SEC).
- High sensitivity and precision: Capable of detecting trace amounts of substances with high accuracy.
- Versatile applications: Used in pharmaceutical production and analysis, environmental testing, food safety, and more.
- Quantitative and qualitative analysis: Provides both the identity and concentration of compounds.

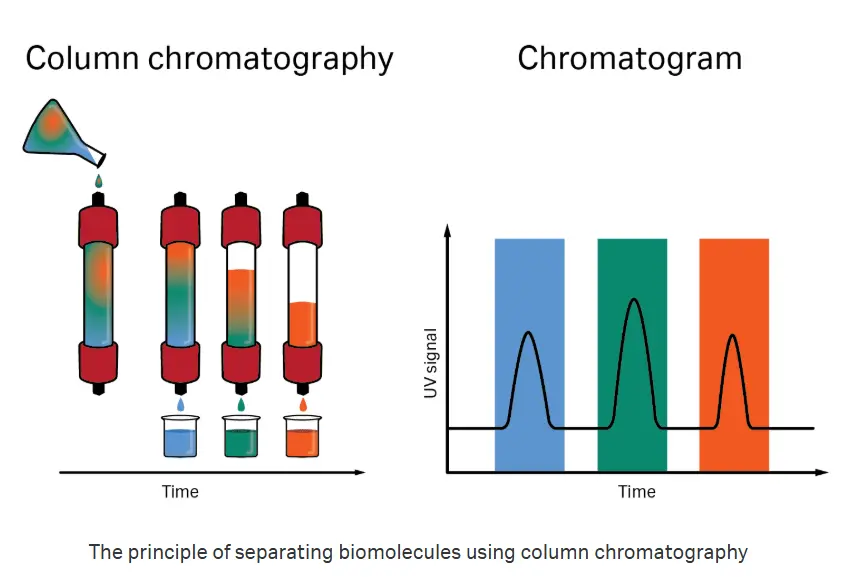

How does liquid chromatography work?
The process of how liquid chromatography works involves a series of carefully controlled steps that ensure accurate separation and detection:
Sample injection:
The process begins with the injection of a volume of the sample into the mobile phase stream. This is typically done using an autosampler for automated systems or a manual injector in simpler setups. Accurate injection is crucial for reproducible results and consistent peak shapes in the chromatogram. For analysis, small and precise volumes are injected. If samples contain particulates, filtration is recommended prior to injection.
Mobile phase flow:
The mobile phase, which is an aqueous buffer, liquid solvent, or mixture of solvents, flows through the system under the pressure dictated by the system. A precision pump ensures a constant and stable flow rate, which is essential for maintaining consistent retention times and reliable separation.
Interaction with stationary phase:
As the sample travels through the column, its components interact with the stationary phase packed inside. These interactions depend on the chemical or physical properties of the analytes—such as polarity, charge, or size—and determine how long each compound is retained in the column.
Separation:
The varying degrees of interaction between each compound and the stationary phase cause them to move through the column at different speeds. Compounds that interact more strongly with the stationary phase are retained longer, while those with weaker interactions leave the stationary phase sooner, resulting in separation.
Detection:
As each compound exits the column, it passes through a detector that measures its presence and concentration. Common detectors include UV-Vis, fluorescence, and mass spectrometry, each chosen based on the nature of the analytes being studied.
Chromatogram generation:
The detector sends signals to a data system, which generates a liquid chromatogram–a graph displaying peaks for each compound. The position of each peak (retention time) helps identify the compound, while the peak area or height is used to determine its concentration.
Types of liquid chromatography
These are broadly classified in two ways - based on pressure properties and on stationary phase chemistry.
| Type | Description | Typical applications |
| High-performance liquid chromatography (HPLC) | Uses moderate pressure (up to 6000 psi) to push liquid through tightly packed columns, offering high resolution and speed. Particle sizes are typically 3-5 µm. Can be combined with mass spectrometry (MS) in a technique called LC-MS. Explore HPLC with Phenomenex |
Drug testing, food safety, clinical diagnostics |
| Ultra-high-performance liquid chromatography (UHPLC) | Operates at higher pressures (up to 15 000 psi) than HPLC, allowing faster and more efficient separations. Particle sizes are smaller than for HPLC, < 2 µm. Can be combined with MS in a technique called LC-MS. Explore UHPLC with Danaher Life Sciences |
Advanced pharmaceutical analysis, proteomics |
| Fast-performance liquid chromatography (FPLC) | Operates at a lower pressure than HPLC, which is gentler and allows fine separation of biological molecules such as proteins and viruses from their impurities. Formats include chromatography resins in columns, membranes in capsules, and fiber-based adsorbents in units. | Biologic manufacturing and analysis |
| Normal phase LC (NPC) | Uses a polar stationary phase and a nonpolar mobile phase that contains mostly water | Lipid analysis, separation of isomers in HPLC and UHPLC |
| Reversed phase LC (RPC) | Employs a nonpolar stationary phase and a polar mobile phase, reversed from the polarity in NPC. | Metabolomics, drug analysis, environmental testing in HPLC and UHPLC |
| Hydrophilic interaction chromatography (HILIC) | Similar to normal phase except the mobile phase is mostly organic instead of aqueous. | Separates sugars, amino acids, and polar pharmaceuticals In HPLC and UHPLC |
| Affinity chromatography | Utilizes specific binding interactions between a target molecule and a ligand to achieve purity of up to 95% in a single step. Often used as the first step in purification because of its efficiency. | Antibody purification, enzyme isolation, purification of recombinant proteins with an affinity tag in FPLC |
| Ion exchange chromatography (IEX) | Separates molecules based on their charge using charged stationary phases. Includes cation and anion exchange. | Protein purification, purification of other biological molecules in FPLC, water quality analysis in HPLC and UHPLC |
| Hydrophobic interaction chromatography (HIC) | Separates molecules based on their hydrophobicity. | Protein purification, especially antibodies in FPLC |
| Multimodal (mixed-mode) chromatography | Uses a combination of properties, such as charge, size, and hydrophobicity to solve purification challenges when traditional methods don’t work. | Biologic purification in FPLC |
| Size exclusion chromatography (SEC) | Separates molecules based on size using porous beads. | Polymer analysis, sizing of proteins and other biologics in FPLC |

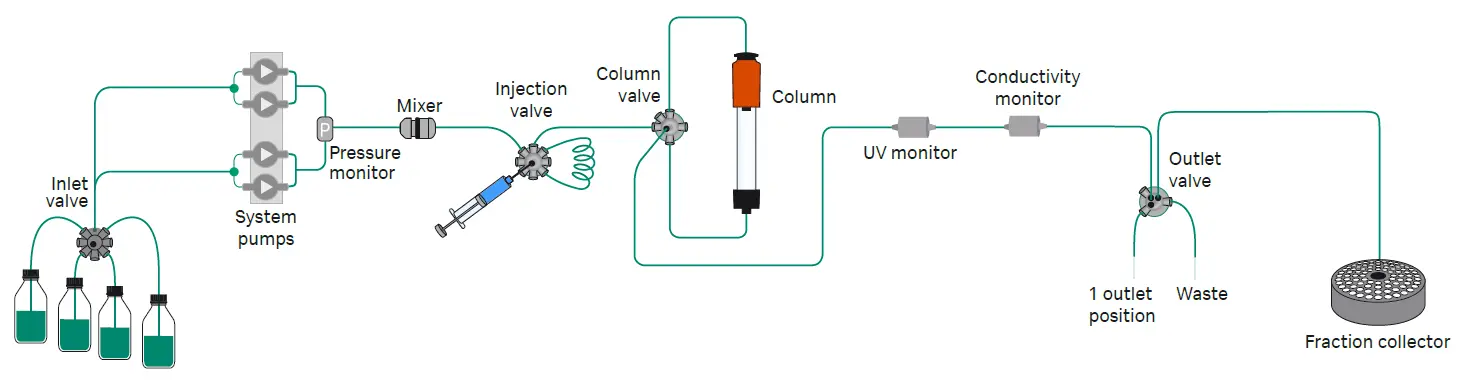

Components of a liquid chromatography system
A liquid chromatography system is a sophisticated assembly of interconnected components, each playing a critical role in ensuring accurate, reproducible, and high-resolution separation of chemical compounds and biological molecules.
Below is a detailed breakdown of each component and its function within the system:
1. Liquid reservoirs
The liquid reservoirs are containers that hold the mobile phase solvents or solutions, which are essential for transporting the sample through the system. Common solvents for HPLC and UHPLC include water, methanol, and acetonitrile, often used in various combinations depending on the nature of the analysis. FPLC uses aqueous buffers of defined salt concentration and pH.
In more advanced systems, multiple reservoirs are used to enable gradient elution, where the composition of the mobile phase changes during the run to improve separation of complex mixtures. Mixers may be used to ensure proper mixing in FPLC systems.
2. Pump
The pump is the heart of the LC system, responsible for delivering the mobile phase from the reservoirs to the column at a precise and consistent flow rate. It operates under a defined pressure range with pressures UHPLC > HPLC > FPLC to push the mobile phase through tightly packed columns (or membranes or other matrices for FPLC).
A stable flow rate is crucial for maintaining reproducibility, peak resolution, and retention time accuracy. Modern pumps for HPLC and UHPLC systems are often equipped with dual pistons to minimize pulsation and ensure smooth solvent delivery. FPLC systems typically employ peristaltic pumps, which use a rotor to pinch tubing and generate a vacuum that moves liquid forward.
3. Injector
The injector introduces the sample solution into the flowing mobile phase. This can be done manually using a syringe or automatically using an autosampler, which is especially useful for high-throughput laboratories. The injector must deliver a precise and reproducible volume of sample to ensure consistent results.
In analytical LC, injection volumes are typically in the microliter range, while preparative LC involves larger volumes.
4. Column
The column is the core component where the actual separation of compounds takes place. It’s packed with a stationary phase, typically made of silica particles modified with chemical groups for UHPLC and HPLC. In FPLC, agarose is a common matrix.
The choice of column—its length, diameter, particle size, and stationary phase chemistry—directly affects the efficiency, selectivity, and resolution of the separation. Columns are available in various formats tailored to specific applications, from analytical to preparative scales.
5. Detector
Once the separated compounds exit the column, they pass through a detector, which identifies and quantitates them based on their physical or chemical properties. The most common detectors include:
- UV-visible (UV-vis): Measures absorbance of UV and visible light.
- Fluorescence: Detects compounds that emit light upon excitation.
- Refractive index (RI): Measures changes in refractive index of the eluent.
- Mass spectrometry (MS): Provides molecular weight and structural information.
The detector generates a signal for each compound, which is plotted as a peak on the chromatogram. The area under each peak correlates with the concentration of the compound.
6. Data system
The data system is the software interface that controls the chromatography system and processes the output from the detector. It collects raw data, converts it into a liquid chromatogram, and provides tools for peak integration, quantitation, method development, and report generation. Advanced systems also offer real-time monitoring, automated calibration, and compliance features for regulated environments (e.g., 21 CFR Part 11 in pharmaceuticals).
Applications of liquid chromatography
Below are the major fields where liquid phase chromatography plays a critical role:
1. Pharmaceutical industry:
LC is a cornerstone in pharmaceutical research, development, and quality control.
- Drug discovery and development: LC is used to analyze active pharmaceutical ingredients (APIs), excipients, and degradation products during formulation.
- Purity and impurity profiling: Ensures that drugs meet regulatory standards by detecting and quantitating impurities.
- Stability testing: Monitors chemical stability of drugs under various conditions over time.
- Bioavailability and pharmacokinetics: LC-MS/MS is used to study how drugs are absorbed, distributed, metabolized, and excreted in the body.
2. Environmental monitoring:
LC is essential for detecting and quantitating pollutants in environmental samples.
- Water quality testing: Identifies contaminants such as pesticides, herbicides, pharmaceuticals, and industrial chemicals in drinking and surface water.
- Soil and sediment analysis: Detects persistent organic pollutants (POPs) and heavy metals.
- Air quality monitoring: Analyzes airborne toxins and volatile organic compounds (VOCs) when coupled with appropriate sampling techniques.
3. Food and beverage industry:
Ensuring food safety and quality is a major application of LC.
- Additive and preservative analysis: Quantitates artificial sweeteners, colorants, and preservatives.
- Contaminant detection: Identifies harmful substances like mycotoxins, pesticides, and veterinary drug residues.
- Nutritional labeling: Measures vitamins, amino acids, and other nutrients to ensure accurate labeling.
- Flavor and aroma profiling: Used in product development and quality control of beverages, spices, and processed foods.
4. Clinical and biomedical research:
In healthcare and life sciences, LC is used for diagnostics and biomarker discovery.
- Therapeutic drug monitoring (TDM): Measures drug levels in patient samples to ensure efficacy and avoid toxicity.
- Metabolomics and proteomics: LC-MS is used to profile metabolites and proteins in biological samples.
- Hormone and vitamin analysis: Detects and quantitates hormones like insulin, cortisol, and vitamins such as B12 and D.
- Disease biomarker discovery: Helps identify molecular signatures of diseases such as cancer, diabetes, and cardiovascular disorders.
5. Forensic science:
Liquid chromatography plays a vital role in criminal investigations and toxicology.
- Toxicological screening: Detects drugs, poisons, and alcohol in biological samples such as blood, urine, and hair.
- Drug abuse testing: Used in workplace testing, sports doping control, and legal investigations.
- Explosive and chemical residue analysis: Identifies trace residues from explosives or chemical agents at crime scenes.
6. Biotechnology and biopharmaceuticals:
LC is used for the development and production of biologics.
- Biomolecule purification and analysis: Techniques like ion exchange and affinity chromatography in FPLC are used to purify and analyze target biologics, including antibodies, recombinant proteins, enzymes, viral vectors, and nucleic acids.
- Monoclonal antibody characterization: FPLC can be used to analyze monoclonal antibody (mAb) characteristics such as size and charge variants. Some post-translational modifications, such as glycan pattern, can be determined using LC-MS.
- Enzyme kinetics and activity studies: HPLC and UHPLC can measures enzyme-substrate interactions and reaction rates.
7. Chemical and petrochemical industry:
LC is used to analyze raw materials, intermediates, and final products.
- Quality control of industrial chemicals: Ensures consistency and purity of solvents, polymers, and additives.
- Petroleum product analysis: Identifies and quantifies hydrocarbons, additives, and degradation products.
- Catalyst monitoring: Tracks catalyst performance and by-products in chemical reactions.
8. Academic and research institutions:
Liquid chromatography is a fundamental tool in academic research across chemistry, biology, and materials science.
- Analytical method development: Used to create and validate new analytical techniques.
- Fundamental research: Supports studies in organic synthesis, natural product isolation, and molecular biology.
- Educational training: Teaches students the principles of separation science and instrumental analysis.
Principles of liquid chromatography
These principles are used to measure liquid chromatography properties.
1. Retention time (tR)
- The time it takes for a compound to travel from the injector to the detector.
- Used to identify compounds based on known standards.
2. Peak area and height
- Proportional to the concentration of the compound.
- Used for quantitative analysis.
3. Resolution (Rs)
- Measures how well two peaks are separated.
- Higher resolution indicates better separation.
4. Efficiency (N)
- Indicates column performance based on the number of theoretical plates.
- Higher efficiency means sharper peaks.
5. Selectivity (α)
- The ability to distinguish between two compounds.
- Calculated as the ratio of their retention times.
Conclusion
Liquid chromatography is a powerful and versatile analytical technique used across a wide range of industries and scientific disciplines. It’s also an essential part of purifying molecules such as mAbs in the biopharmaceutical industry. From environmental testing and food safety to biomedical research and pharmaceuticals, it enables accurate separation, identification, and quantitation of complex mixtures. By understanding how liquid phase chromatography works and its various components, scientists and professionals can make informed decisions and achieve reliable results in their analyses and preparative purification.
Frequently asked questions (FAQs)
1. What is meant by liquid chromatography?
Liquid chromatography is a technique used to separate, identify, and quantitate components in a liquid mixture. Used in laboratories and pharmaceutical manufacturing, it works by passing the mixture through a column or other container, such as a capsule, filled with a stationary phase. A liquid mobile phase carries the sample through the system.
2. What is a liquid chromatogram?
A liquid chromatogram is a graphical output of a chromatography run. It displays peaks that represent different compounds, with peak height or area indicating their concentration.
3. What are the main types of liquid chromatography?
The main types are high-performance liquid chromatography (HPLC), ultra-high-performance LC (UHPLC), and fast-performance LC (FPLC).
4. What instruments are used in liquid chromatography?
Typically, an automated chromatography system is used. System parts generally include liquid reservoirs, a pump that delivers the required pressure, an injector, a chromatographic column, a detector, and software for analysis.
5. In which industry is liquid chromatography used most?
Liquid chromatography is most widely used in the pharmaceutical industry for drug development, quality control, and manufacturing. It is used both to purify the target product and to analyze its purity.
