47 mm in-line filter holder, aluminum
Lightweight, anodized aluminum filter holder
Materials of construction
Overview

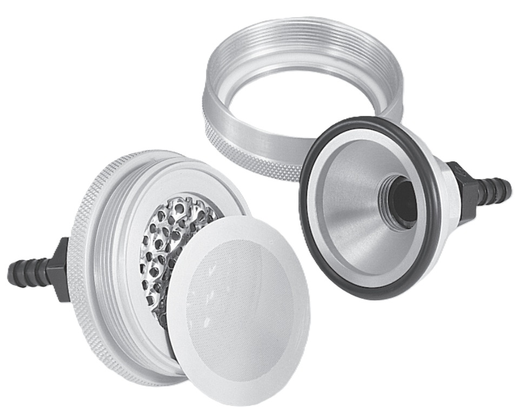

47 mm in-line filter holder, a Pall Life Sciences product, is a lightweight, anodized aluminum filter holder with a convenient design that allows opening and closing without disrupting membrane.
Specifications
Materials of Construction
Inlet-Cover, Base, and Collar Cap: Anodized aluminum
Hose Barb Adapters: Polyethylene
Support Screen and Underdrain Disc: Electropolished type 316 stainless steel
O-Ring: Viton◆
Thrust Ring: PTFE
Effective Filtration Area
9.6 cm2
Dimensions
Overall Length (Excluding Hose Barbs): 5.7 cm (2.2 in.)
Diameter: 5.9 cm (2.3 in.)
Inlet/Outlet Connections
3⁄8 in. FNPT; hose barb adapters accept 6.4 mm (1⁄4 in.) ID tubing
Maximum Operating Temperature
Limited by filter type, hose barb adapters 93°C (199°F), or O-ring 204°C (399°F)
Maximum Operating Pressure
14 bar (1400 kPa, 200 psi)
Sterilization
Provided non-sterile. Autoclavable if desired at 121 - 123°C (250 - 253°F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min .
◆Do not autoclave with aluminum foil; use autoclave paper or other permeable wrap such as Tyvek.
Applications
Designed for in-line liquid or gas filtration.
Durable construction for stack sampling.
