47 mm with nylon membrane polycarbonate
Lightweight 47 mm filter holder designed for efficient particulate monitoring in gases or liquids, ideal for laboratory and industrial use.
Materials of construction
Try this product before buying
Samples are free of cost
Overview

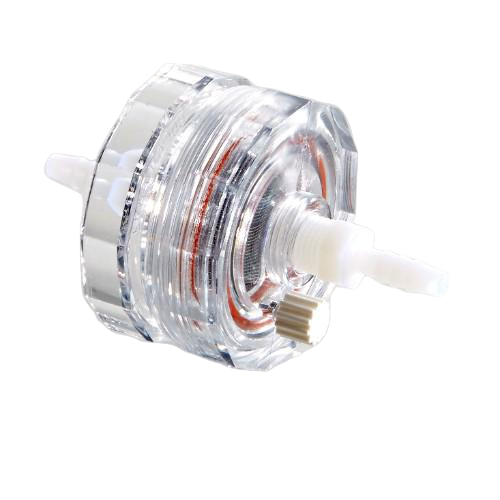

47 mm In-line Filter Holder, a Pall Life Sciences product, is a sturdy, lightweight unit for monitoring particulates in gases or liquids. Lightweight plastic construction. Locking Luer vent plug facilitates removal of air bubbles in liquid filtration.
Specifications
Materials of Construction
Body: Polycarbonate
Hose Barb Adapters: Nylon
Support Screen: Polyphenylsulfone
O-Ring: Silicone
Vent Cap: Polypropylene
Effective Filtration Area
9.6 cm2
Dimensions
Overall Length (Includes Vent Cap, Excludes Hose Barb): 5.8 cm (2.3 in.)
Diameter: 6.4 cm (2.5 in.)
Inlet/Outlet Connections
1⁄4 in. -18 FNPT; hose barb adapters accept 6.4 mm (1⁄4 in.) ID tubing
Maximum Operating Temperature
Limited by filter type or by hose barb 121°C (250°F)
Maximum Operating Pressure
3.4 bar (340 kPa, 50 psi)
Sterilization
Provided non-sterile. Autoclavable if desired at 121 - 123°C (250 - 253°F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min .
Applications
Designed for in-line liquid or gas filtration.
Indoor and outdoor air monitoring or sampling.
Ideal for venting.
