Versapor™ W/WA membranes for liquid filtration
Hydrophilic acrylic copolymer membranes for general liquid filtration applications
Choose your product
1. Format
2. Pack size
3. Pore size
To buy, choose your product.
Price includes standard shipping and handling
Overview

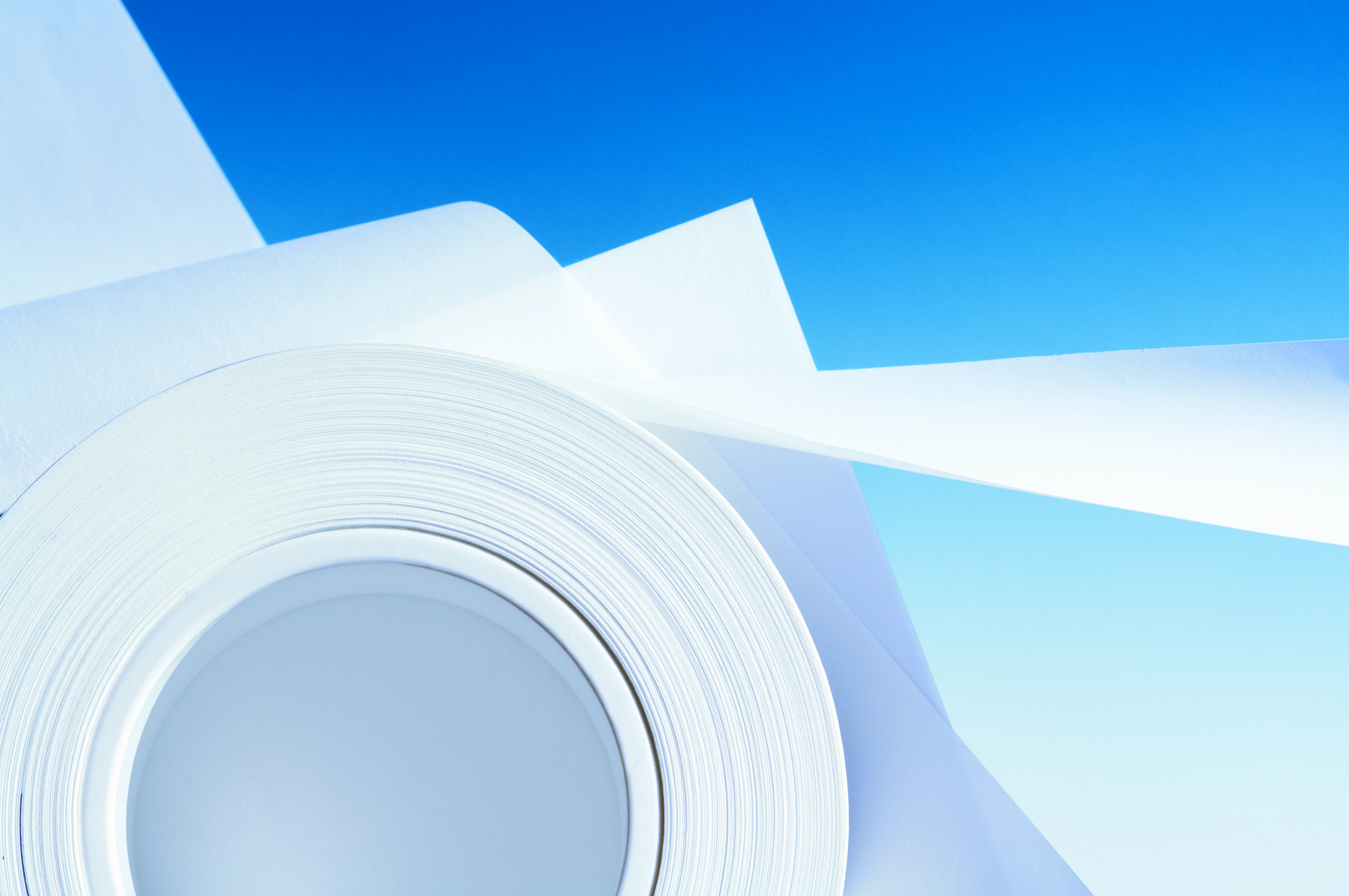

Versapor™ W/WA membrane sheets and rolls are our most robust hydrophilic materials for general liquid filtration applications. These are designed to be used as single-use membranes in applications requiring retention properties combined with high tensile strengths.
- They are ideal for prefiltration, when filtering viscous and difficult-to-filter solutions.
- Available in a range of pore sizes to match your retention and flow rate requirements.
- The non-woven internal support results in high tensile strength and dimensional stability allowing compatibility with different manufacturing processes.
- These hydrophilic acrylic copolymer membranes are cast on a non-woven nylon support providing excellent durability and handling features which minimize material scrap in device manufacturing.
- These bidirectional materials are compatible with the following sealing methods: adhesive, heat, insert molding, mechanical, radio frequency, and ultrasonic.
- Versapor™ W/WA membranes withstand gamma, UV, and ETO sterilization providing compatibility to your most stringent sterilization requirements and medical applications.
- The wide chemical and temperature compatibility and compliance with United States Pharmacopeia (USP) Biological Reactivity Tests, In Vivo <88> for biosafety ensures robust performance in critical venting applications.
Custom roll, sheet, and disc sizes available upon request. Please contact your local sales representative for additional information.
| Nominal pore size | Thickness(mils) | Thickness(μm) | Water bubble point (PSI) | Water Bubble Point (Bar) | Water Flow (@ 0.7 bar, 10 psi) |
| 0.2 μm | 6.0-12.0 mils | 152.4-304.8 μm | ≥ 25.0 psi | ≥ 1.72 bar | ≥ 10.6 ml/min/cm2 |
| 0.45 μm | 6.0-12.0 mils | 152.4-304.8 μm | ≥ 16.0 psi | ≥ 1.10 bar | ≥ 21.0 ml/min/cm2 |
| 0.8 μm | 6.0-12.0 mils | 152.4-304.8 μm | ≥ 8.0 psi | ≥ 0.55 bar | ≥ 88.0 ml/min/cm2 |
| 1.2 μm | 6.0-12.0 mils | 152.4-304.8 μm | ≥ 6.0 psi | ≥ 0.41 bar | ≥ 176.0 ml/min/cm2 |
| 3.0 μm | 4.5-8.5 mils | 114.3-215.9 μm | ≥ 3.0 psi | ≥ 0.21 bar | ≥ 378.0 ml/min/cm2 |
| 5.0 μm | 4.5-8.5 mils | 114.3-215.9 μm | ≥ 2.0 psi | ≥ 0.14 bar | ≥ 662.0 ml/min/cm2 |
Product specifications
Showing 13 products
Specs
Product
Format
Pack size
Pore size
Availability
Price
S80104
Sheet
1/pk
0.45 μm
In stock51 available
S80151
Sheet
1/pk
3 µm
In stock37 available
S80158
Sheet
1/pk
0.2 µm
In stock69 available
V02W500
Roll
500 (+/- 25) ft roll
0.2 µm
In stock500 available
S80143
Sheet
1/pk
1.2 µm
Selling fast3 available
S80105
Sheet
1/pk
0.8 µm
Stock on request
S80191
Sheet
1/pk
5 µm
Stock on request
V02W500-13
Roll
500 (+/- 25) ft roll
0.2 µm
Stock on request
V12W3R
Roll
3 m roll
1.2 µm
Stock on request
V12W500
Roll
500 (+/- 10) ft roll
1.2 µm
Stock on request
V45W500
Roll
500 (+/- 10) ft roll
0.45 μm
Stock on request
V50TNW500
Roll
500 (+/- 25) ft roll
5 µm
Stock on request
V50TNW5014
Roll
500 (+/- 25) ft roll
5 µm
Stock on request
On request
Product availability is not guaranteed and subject to change.
