Advanta™ II liquid and gas filter housings
ASME BPE compliant modular housings for sanitary applications
Choose your product
1. Product type
2. Filter length
3. Inlet/Outlet connection
To buy, choose your product.
Price includes standard shipping and handling
Overview
The Advanta™ II range of high-quality filter housings for critical liquid and gas filtration applications has been designed and built in conformance with ASME Bioprocessing Equipment (BPE) standards for high levels of sanitary requirements. This reflects in the choice of materials, the designs, and the manufacturing process, including weld procedures and surface finishes.
- Aseptic design: Crevice-free electropolished surfaces (internal Ra value < 0.375 μm / 14.8 μin), fully self-draining and no dead legs, enabling low point drainage and supporting low hold-up volumes for maximum product recovery.
- Flexibility and Modular Design: Variety of inlet and outlet connections as part of the core housing, and a range of modular interchangeable vent and drain connections to choose from, enabling flexible fit into any facility, and reconsideration of vent and drain option without the need to replace the entire housing.
- Filter cartridge: Accepts one single-open-ended Cytiva code 7 or code 2 'AB' style 127 mm (5 in.), 254 mm (10 in.), 508 mm (20 in.) or 762 mm (30 in.) height filter cartridge.

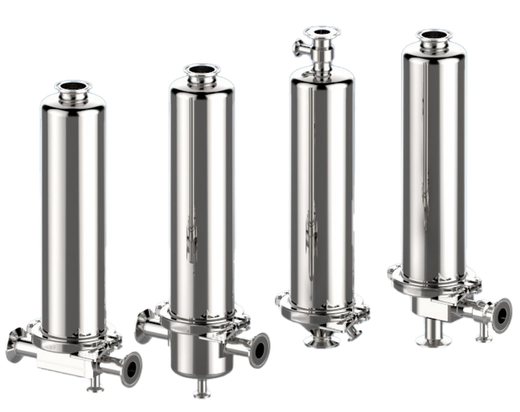

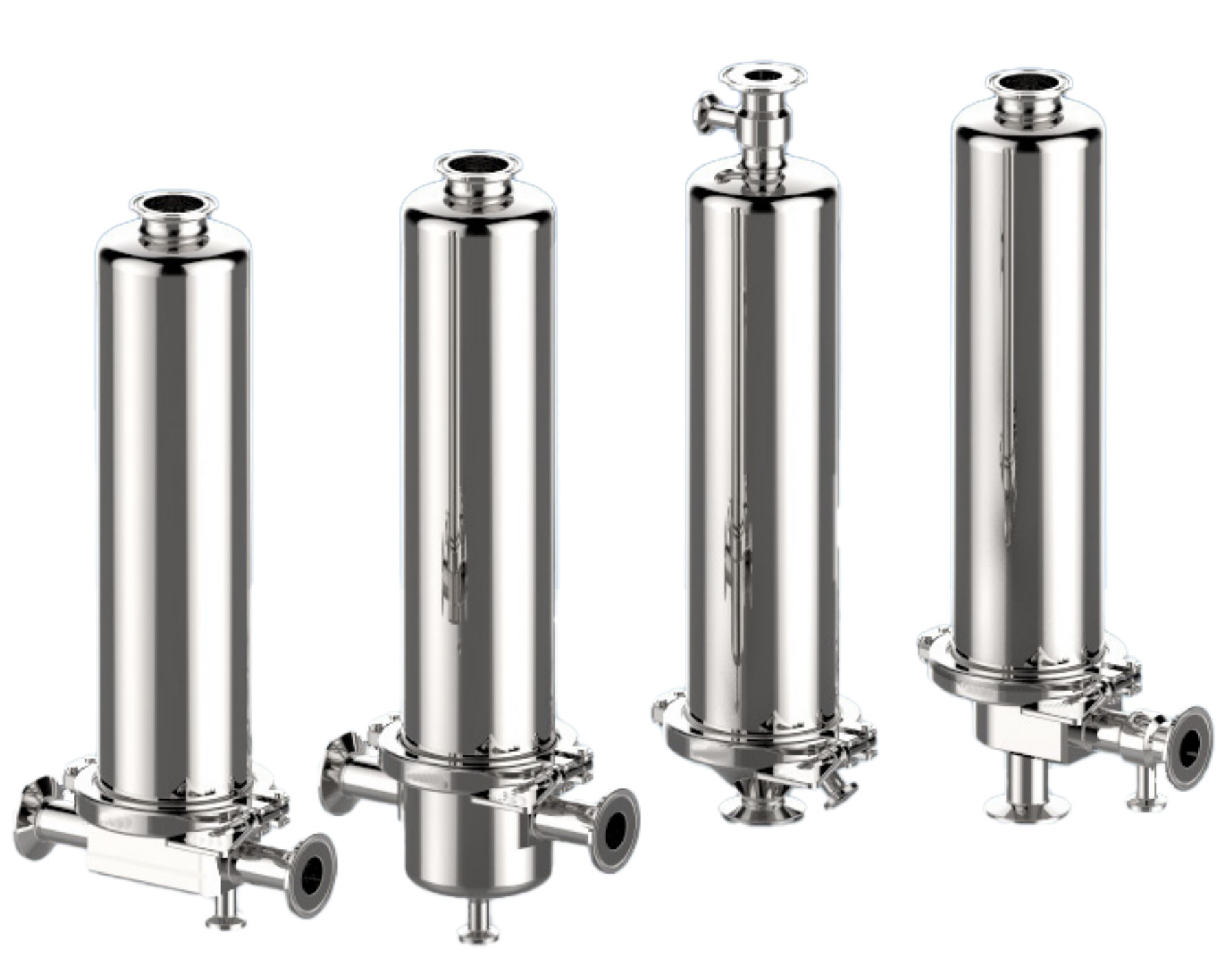

Housing types
The Advanta™ II housing range is available in four configurations:
- AGT series for gas filtration applications (T-style)
- ALT series for liquid filtration applications (T-style)
- ALI series for in-line liquid filtration applications
- AVL series with an L-shaped flow pattern, typically used for venting applications.

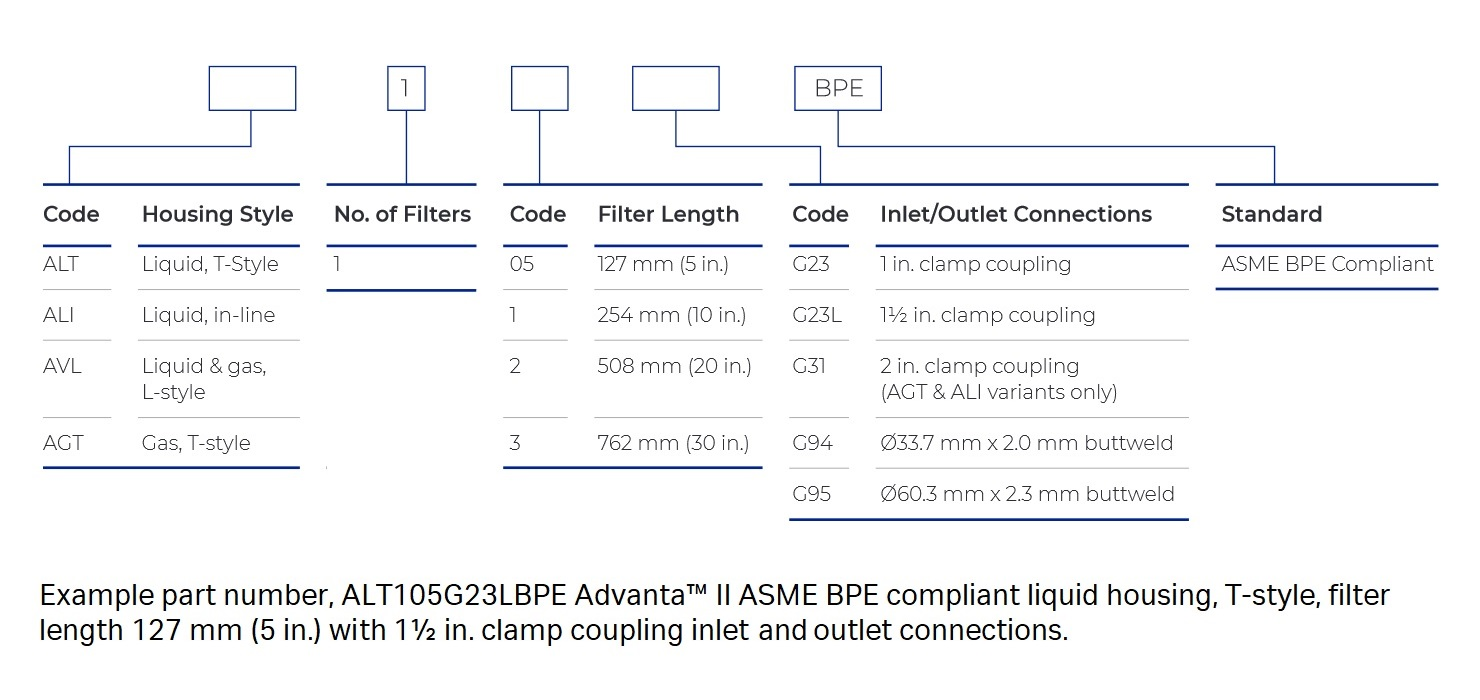

Housing inlet and outlet connection options
Note: G94 and G95 versions are available upon request.
After choosing the Advanta™ II housing configuration, combine the vent and drain connections to create a complete system.

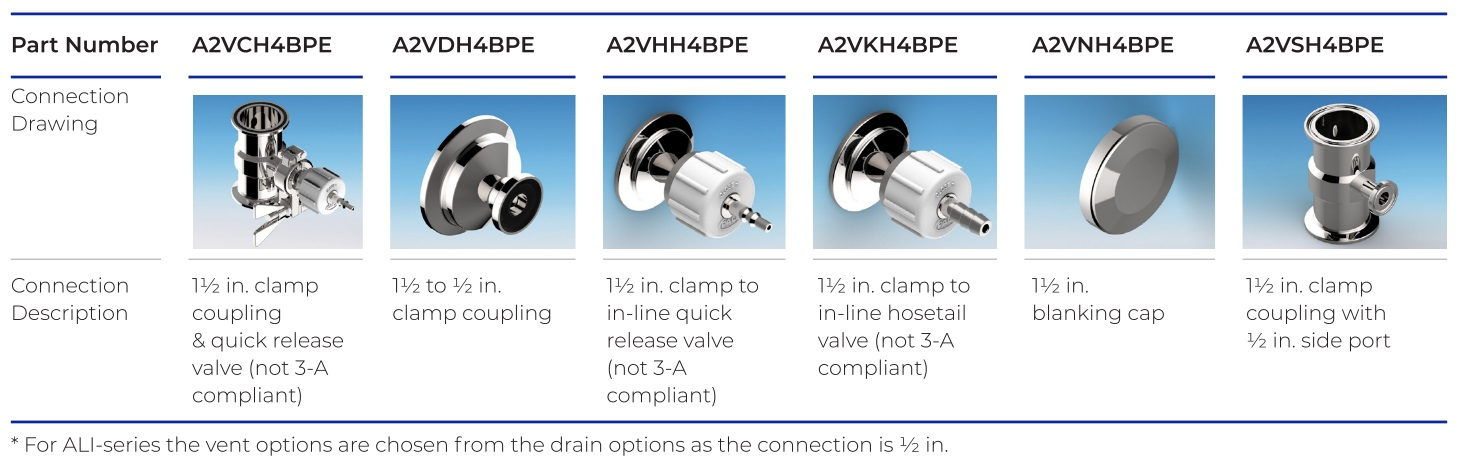

Vent connections (sold separately)
Drain connections (sold separately)
Additional tools and services
A heating jacket and filter stands are available for the Advanta II housing. In addition, valve seals and closure o-rings are available in a variety of materials. For more details please contact your Cytiva representative.
For applications with very stringent requirements, the following services are available:
- Oxygen clean packaging service is an additional level of cleaning activity for housings that are destined for use in oxygen-rich systems. The housings are bagged following the cleaning to avoid down-stream contamination.
- Boroscope weld inspection service is an additional level of inspection applied to the internal welds of the housing to ensure the condition of the interior surfaces of the filter housing. The output of the Boroscope inspection is a series of still images that can be included in the documentation pack.
Advanta™ II filter housing product configurator
Product specifications
Showing 56 products
Specs
Product
Product type
Filter length
Inlet/Outlet connection
Availability
Price
A2VNH4BPE
Vent kit
N/A
N/A
Selling fast1 available
A2VSH4BPE
Vent kit
N/A
N/A
Selling fast1 available
AGT105G23LBPE
Gas, T-style
5 in.
1 1/2 in. Hygienic clamp
Selling fast1 available
ALT11G23BPE
Liquid, T-style
10 in.
1 in. Hygienic clamp
Selling fast1 available
A2-BPE-OXCLEAN-FEE
Service
N/A
N/A
Temporarily unavailable
A2DHH4BPE
Drain kit
N/A
N/A
Stock on request
A2DKH4BPE
Drain kit
N/A
N/A
Stock on request
A2DNH4BPE
Drain kit
N/A
N/A
Stock on request
A2VCH4BPE
Vent kit
N/A
N/A
Stock on request
A2VDH4BPE
Vent kit
N/A
N/A
Stock on request
A2VHH4BPE
Vent kit
N/A
N/A
Stock on request
A2VKH4BPE
Vent kit
N/A
N/A
Stock on request
AGT105G23BPE
Gas, T-style
5 in.
1 in. Hygienic clamp
Stock on request
AGT105G31BPE
Gas, T-style
5 in.
2 in. Hygienic clamp
Stock on request
AGT105G94BPE
Gas, T-style
5 in.
Butt-weld Ø33.7 x 2.0
Stock on request
AGT105G95BPE
Gas, T-style
5 in.
Butt-weld Ø60.3 x 2.0
Stock on request
AGT11G23BPE
Gas, T-style
10 in.
1 in. Hygienic clamp
Stock on request
AGT11G23LBPE
Gas, T-style
10 in.
1 1/2 in. Hygienic clamp
Stock on request
AGT11G31BPE
Gas, T-style
10 in.
2 in. Hygienic clamp
Stock on request
AGT11G94BPE
Gas, T-style
10 in.
Butt-weld Ø33.7 x 2.0
Stock on request
AGT11G95BPE
Gas, T-style
10 in.
Butt-weld Ø60.3 x 2.0
Stock on request
AGT12G23BPE
Gas, T-style
20 in.
1 in. Hygienic clamp
Stock on request
AGT12G23LBPE
Gas, T-style
20 in.
1 1/2 in. Hygienic clamp
Stock on request
AGT12G31BPE
Gas, T-style
20 in.
2 in. Hygienic clamp
Stock on request
AGT12G95BPE
Gas, T-style
20 in.
Butt-weld Ø60.3 x 2.0
Stock on request
AGT13G23BPE
Gas, T-style
30 in.
1 in. Hygienic clamp
Stock on request
AGT13G23LBPE
Gas, T-style
30 in.
1 1/2 in. Hygienic clamp
Stock on request
AGT13G31BPE
Gas, T-style
30 in.
2 in. Hygienic clamp
Stock on request
AGT13G94BPE
Gas, T-style
30 in.
Butt-weld Ø33.7 x 2.0
Stock on request
AGT13G95BPE
Gas, T-style
30 in.
Butt-weld Ø60.3 x 2.0
Stock on request
ALI105G23BPE
Liquid, inline style
5 in.
1 in. Hygienic clamp
Stock on request
ALI105G23LBPE
Liquid, inline style
5 in.
1 1/2 in. Hygienic clamp
Stock on request
ALI11G23BPE
Liquid, inline style
10 in.
1 in. Hygienic clamp
Stock on request
ALI11G23LBPE
Liquid, inline style
10 in.
1 1/2 in. Hygienic clamp
Stock on request
ALI11G31BPE
Liquid, inline style
10 in.
2 in. Hygienic clamp
Stock on request
ALI12G23BPE
Liquid, inline style
20 in.
1 in. Hygienic clamp
Stock on request
ALI12G31BPE
Liquid, inline style
20 in.
2 in. Hygienic clamp
Stock on request
ALI13G23BPE
Liquid, inline style
30 in.
1 in. Hygienic clamp
Stock on request
ALI13G31BPE
Liquid, inline style
30 in.
2 in. Hygienic clamp
Stock on request
ALT105G23BPE
Liquid, T-style
5 in.
1 in. Hygienic clamp
Stock on request
ALT11G005820BPE
Liquid, T-style
10 in.
1 in. Hygienic clamp
Stock on request
ALT11G23LBPE
Liquid, T-style
10 in.
1 1/2 in. Hygienic clamp
Stock on request
ALT12G005820BPE
Liquid, T-style
20 in.
1 in. Hygienic clamp
Stock on request
ALT12G23LBPE
Liquid, T-style
20 in.
1 1/2 in. Hygienic clamp
Stock on request
ALT13G005820BPE
Liquid, T-style
30 in.
1 in. Hygienic clamp
Stock on request
ALT13G23BPE
Liquid, T-style
30 in.
1 in. Hygienic clamp
Stock on request
ALT13G23LBPE
Liquid, T-style
30 in.
1 1/2 in. Hygienic clamp
Stock on request
AVL105G23BPE
Liquid/gas, L-style
5 in.
1 in. Hygienic clamp
Stock on request
AVL105G23LBPE
Liquid/gas, L-style
5 in.
1 1/2 in. Hygienic clamp
Stock on request
AVL11G23BPE
Liquid/gas, L-style
10 in.
1 in. Hygienic clamp
Stock on request
AVL11G23LBPE
Liquid/gas, L-style
10 in.
1 1/2 in. Hygienic clamp
Stock on request
AVL12G23BPE
Liquid/gas, L-style
20 in.
1 in. Hygienic clamp
Stock on request
AVL13G23BPE
Liquid/gas, L-style
30 in.
1 in. Hygienic clamp
Stock on request
AVL13G23LBPE
Liquid/gas, L-style
30 in.
1 1/2 in. Hygienic clamp
Stock on request
AVL13G94BPE
Liquid/gas, L-style
30 in.
Butt-weld Ø33.7 x 2.0
Stock on request
AVL13G95BPE
Liquid/gas, L-style
30 in.
Butt-weld Ø60.3 x 2.0
Stock on request
Product availability is not guaranteed and subject to change.
