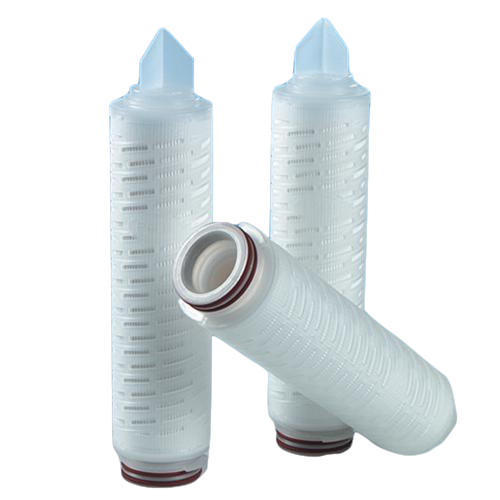

Pall™ Emflon™ FM filter cartridges
Emflon™ FM filter cartridges, part of Cytiva’s Pall filtration portfolio, are designed for cost-effective clarification of solvents used in the manufacture of antibiotics and other active pharmaceutical ingredients (APIs).
Choose your product
1. Filter cartridge style
2. Filter length
3. Effective filtration area
4. O-ring material
To buy, choose your product.
Price includes standard shipping and handling
Overview
Emflon™ FM filter cartridges, part of Cytiva’s Pall filtration portfolio, are designed for cost-effective clarification of solvents used in the manufacture of antibiotics and other active pharmaceutical ingredients (APIs).
- Broad chemical compatibility
- Very high flow rates
- Low extractables
- Tolerant of high operating temperatures
- "No cage" option further reduces potential extractables
These pharmaceutical grade filters contain a proprietary PTFE membrane and are compatible with a broad range of chemicals. They can also be used to ensure cleanliness of high purity solvents.
Compatibility at 20° C
This filter was specifically designed for improved compatibility and optimized economics in polishing a broad array of challenging solvents, including:
- Acetic Acid, Glacial - Acetone
- Acetonitrile Dimethylacetamide (DMAC)
- Dimethylformamide (DMF)
- Dimethylsulfoxide (DMSO) - Ethanol
- Ethyl Acetate - n Heptane - Hexane
- Hydrochloric Acid 38%
- Isopropyl Alcohol (IPA) - Methanol
- Methylene Chloride
- Methyl Isobutyl Ketone (MIBK)
- Methyl Tertiary Butyl Ether (MTBE) - Pyridine- Sodium Hydroxide, 50% -Tetrahydrofuran
- (THF) - Toluene - Water - Xylene
This partial list is provided for general guidance only.
Product specifications
Showing 14 products
Specs
Product
Filter cartridge style
Filter length
Effective filtration area
O-ring material
Availability
Price
AB1FM3PH15
AB style code 3
254 mm (10 in.)
0.58 m²
FEP-encapsulated Silicone
In stock120 available
AB1FM47PH15
AB style code 47
254 mm (10 in.)
0.58 m²
FEP-encapsulated Silicone
In stock190 available
AB1FM7PH1
AB style code 7
254 mm (10 in.)
0.58 m²
FEP-encapsulated FKM
In stock28 available
AB1FM7PH15
AB style code 7
254 mm (10 in.)
0.58 m²
FEP-encapsulated Silicone
In stock1142 available
AB1FM7PH4
AB style code 7
254 mm (10 in.)
0.58 m²
Silicone
In stock124 available
AB2FM3PH15
AB style code 3
508 mm (20 in.)
1.16 m²
FEP-encapsulated Silicone
In stock34 available
AB2FM47PH15
AB style code 47
508 mm (20 in.)
1.16 m²
FEP-encapsulated Silicone
In stock234 available
AB2FM7PH15
AB style code 7
508 mm (20 in.)
1.16 m²
FEP-encapsulated Silicone
In stock117 available
MCY1001FMPH2
MCY 1000 style
254 mm (10 in.)
0.58 m²
PTFE
In stock118 available
AB1FM3PH1
AB style code 3
254 mm (10 in.)
0.58 m²
FEP-encapsulated FKM
Stock on request
AB2FM7PH4
AB style code 7
508 mm (20 in.)
1.16 m²
Silicone
Stock on request
AB3FM47PH15
AB style code 47
762 mm (30 in.)
1.74 m²
FEP-encapsulated Silicone
Stock on request
AB3FM7PH1
AB style code 7
762 mm (30 in.)
1.74 m²
FEP-encapsulated FKM
Stock on request
AB3FM7PH15
AB style code 7
762 mm (30 in.)
1.74 m²
FEP-encapsulated Silicone
Stock on request
Product availability is not guaranteed and subject to change.
