The Xcellerex™ magnetic mixer accelerates, simplifies, and economizes the preparation of large volumes of buffer or cell culture media for intensified monoclonal antibody, vaccine, or genomic medicine processes.
Available in 2000 and 3000 L capacities, the system balances a short height with a compact footprint to fit inside existing facilities without requiring expensive modifications.
The single-use biocontainer incorporates features to increase durability and simplify installation, resulting in protection against leaks and streamlined operations.
Stay in control with flexible automation enabling options to monitor and control the system either locally or remotely.
The Xcellerex™ magnetic mixer scales up production volumes without scaling up complexity.
Robust biocontainer designed to protect against leaks.
Intuitive installation using air inflation - reducing risk of operator error.
Compact height and footprint to fit in tight facility spaces.
Broad volume range to maximize hardware flexibility.
Vortex capabilities at all volumes for fast and efficient mixing of floating powders.
Remote and local control options for better process control and visibility.
In-process monitoring of pH, conductivity, and temperature.
Optional touch-screen human-machine interface (HMI) for intuitive local control.
Optional thermal jacket, including bottom face, for heating and cooling.
Optional weight sensing using hygienic load cells for improved cleanability.
Recommended Applications
Buffer preparation
Cell culture media preparation
Single-use system – mixing consumables
The single-use system is made up of a disposable mixing biocontainer and inflation set.
Rigid folding base surrounds outside of biocontainer film to protect against defects and leaks.
Built-in carrying case with handles improves ergonomics and simplifies installation.
Hard plastic component covers impeller during shipping and storage to prevent damage to the film.
Simple installation and deployment using air inflation.
Pre-configured and customized options available to meet various process needs.

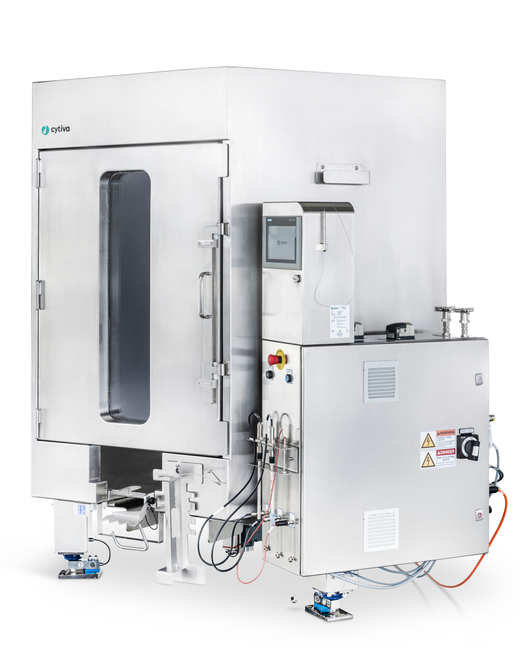

Hardware system
The hardware system consists of a stainless steel mixing tank, electrical cabinet, and optional HMI.
Compact system height and footprint.
Integrated air inflation system.
Flexible control– choose to control remotely or add the option for local control and monitoring with a touch screen.
Powerful integrated drive unit.
Sloped floor of tank toward drain to reduce residual volume.
Xcellerex™ magnetic mixer: Heating and cooling performance: Efficient and consistent large-volume mixing is critical for the success of industrial bioprocesses. We characterize the performance of the single-use Xcellerex™ magnetic mixer (3000 L) in mixing while heating and cooling.
